EPN-TAP services: Using TopCat as a client

Authors
Change Log
Steps
References

Authors

S. Erard, B. Cecconi, P. Le Sidaner

Change Log

Version: 1

Name: Keyuan Yin

Note: First converted from this site

Steps

Launch TopCat

See here

1

Open Table / query remote database

2

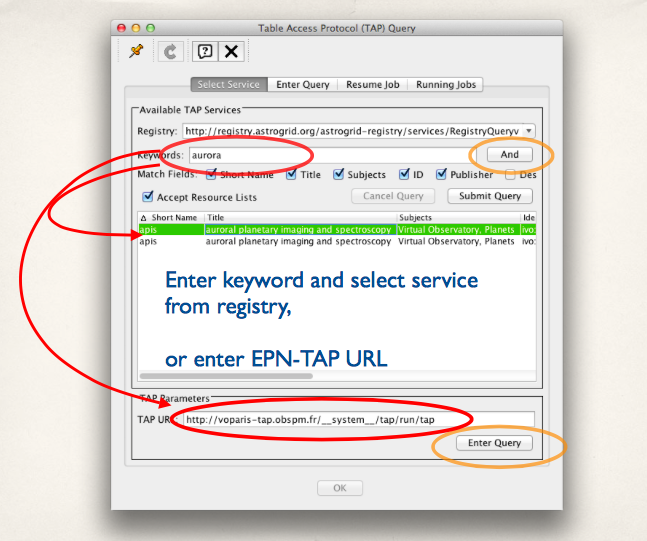

Enter keyword and select service from registry,
or enter EPN-TAP URL

3

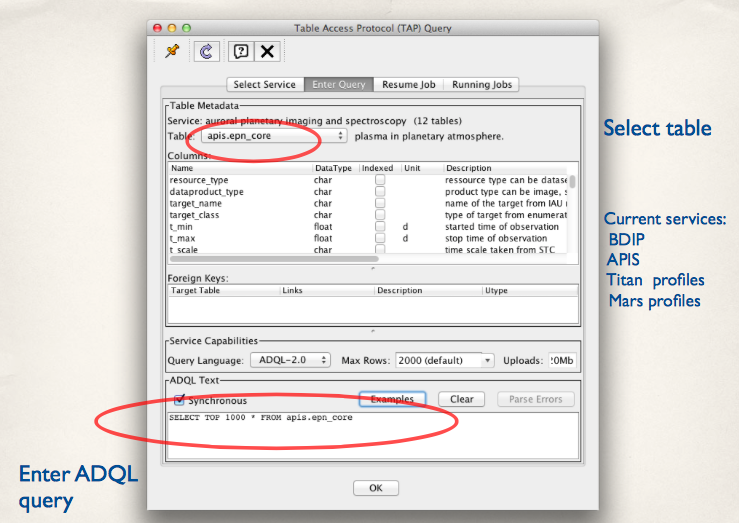

Select Table

Current services:
BDIP
APIS Titan profiles
Mars profiles

Enter ADQL query

4

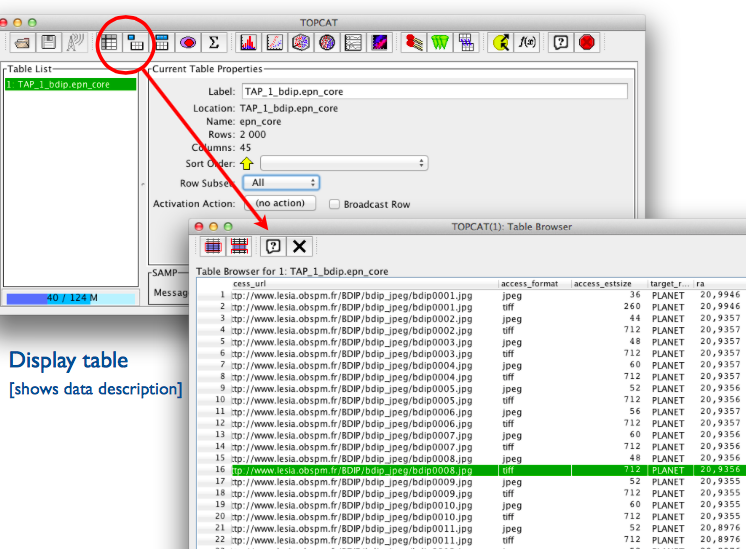

Display table [shows data description]

5

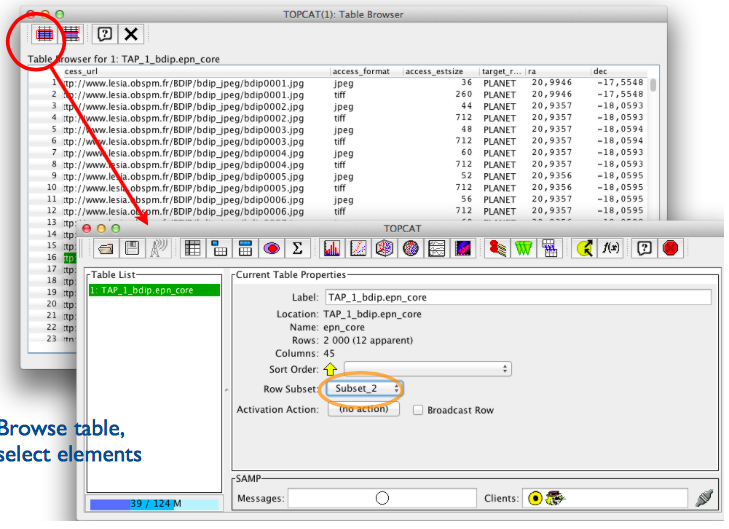

Browse table, select elements

6

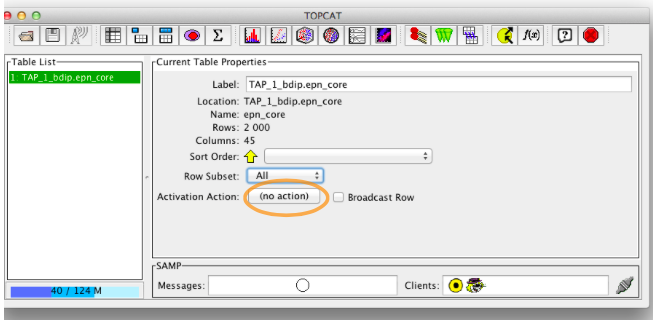

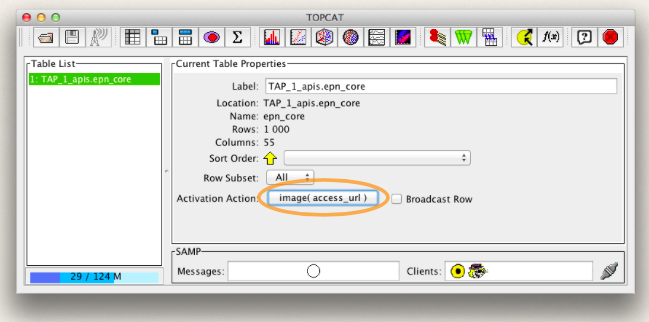

Configure activation
[click on button to invoke action menu]

7

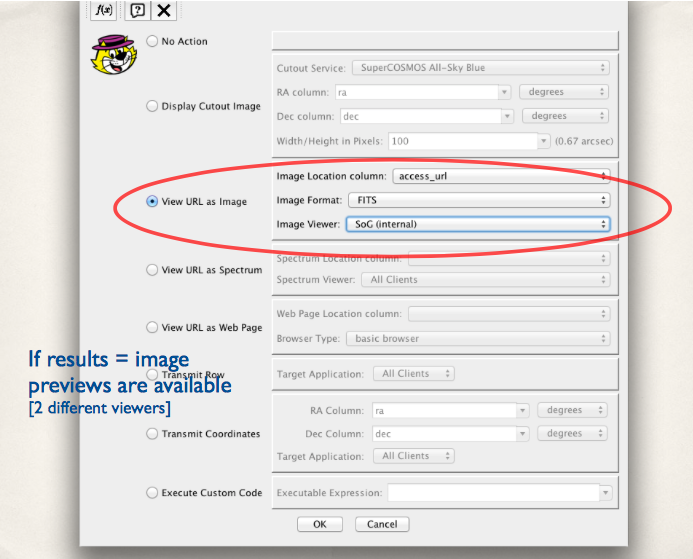

If results = image
previews are available [2 different viewers]

8 9

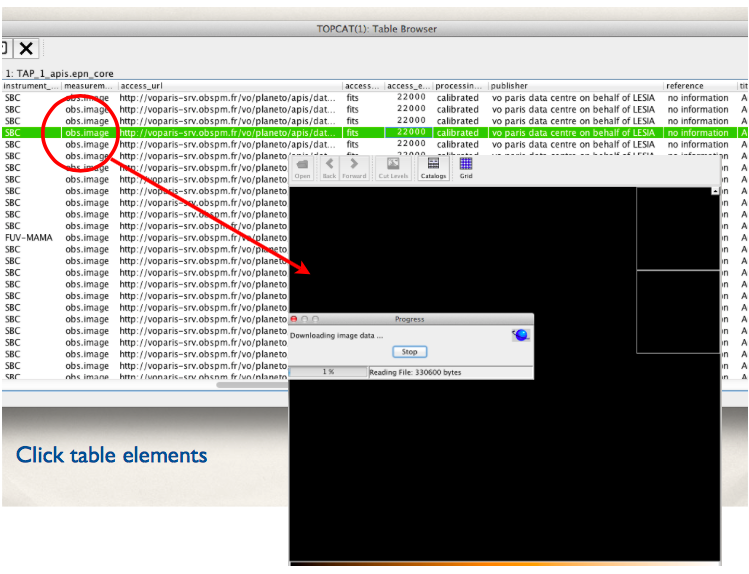

Check Elements

10

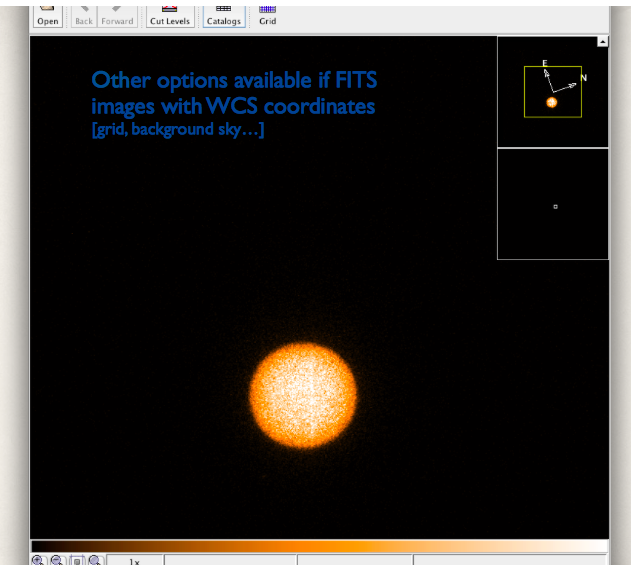

Other options available if FITS
images with WCS coordinates [grid, background sky...]

11

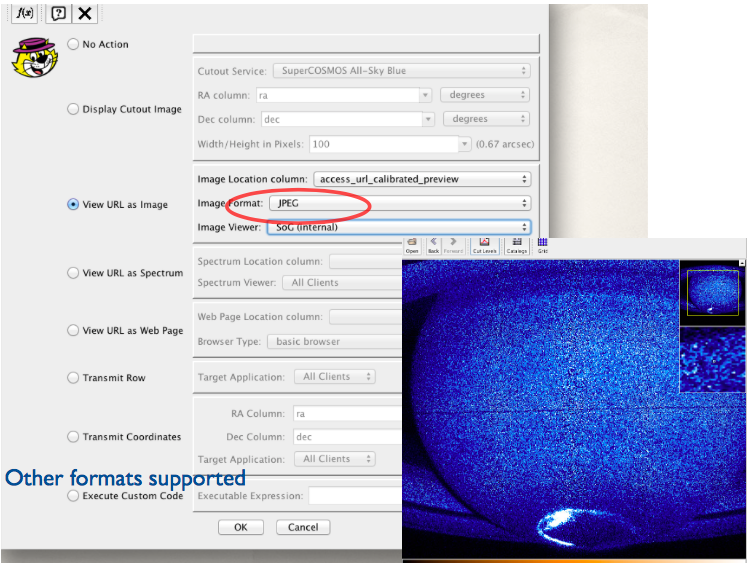

Other formats supported

12

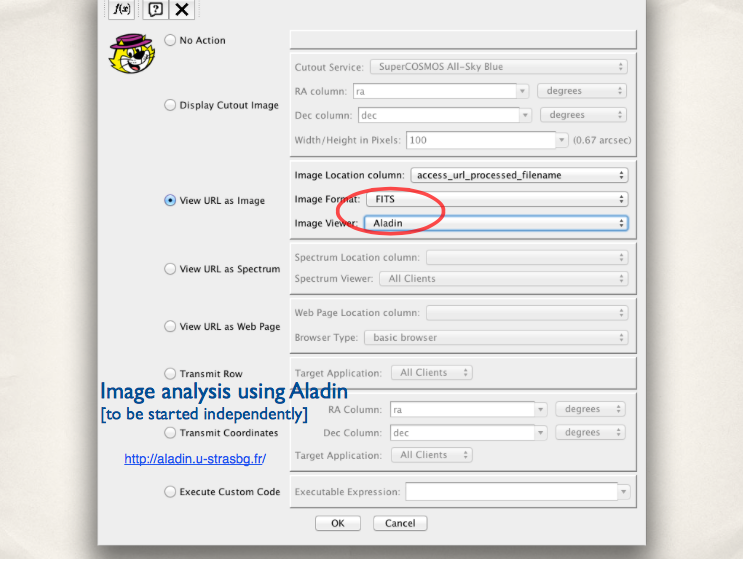

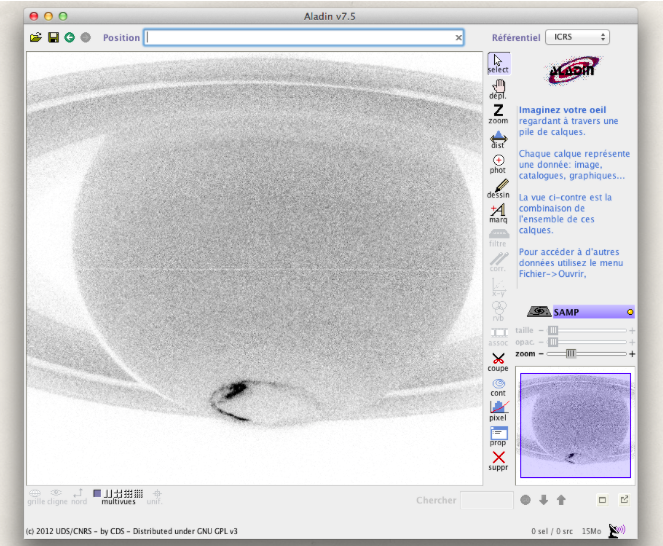

Image analysis using Aladin at this site
[to be started independently]

13 14

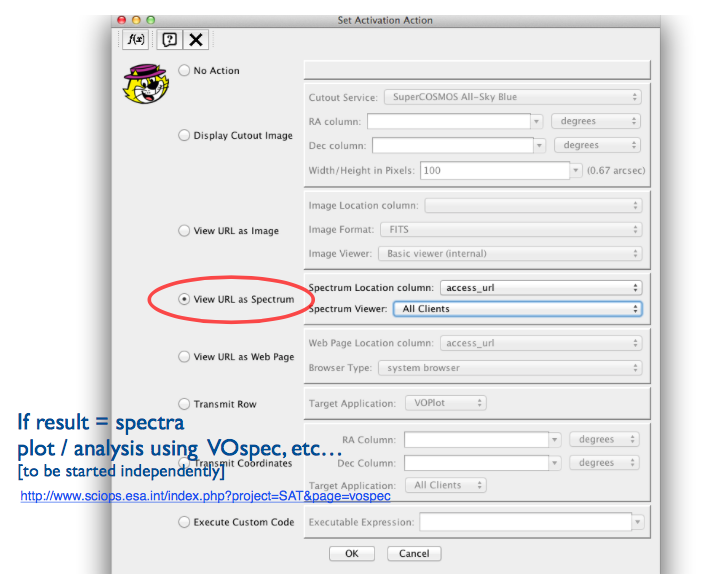

If result = spectra
plot / analysis using VOspec, etc... [to be started independently]

Refer this site

15

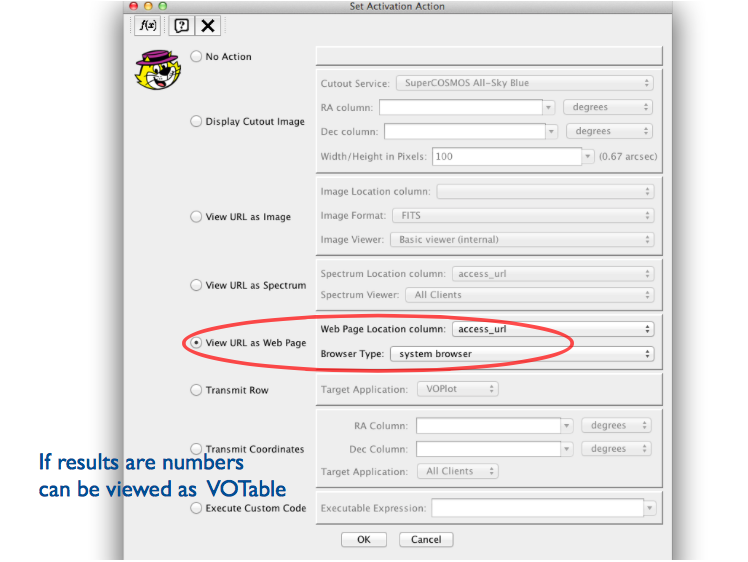

If results are numbers
can be viewed as VOTable

16

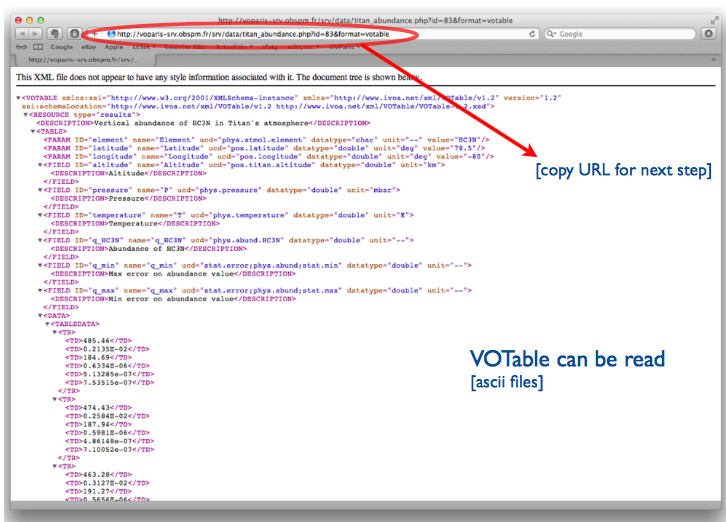

VOTable can be read [ascii files]

17

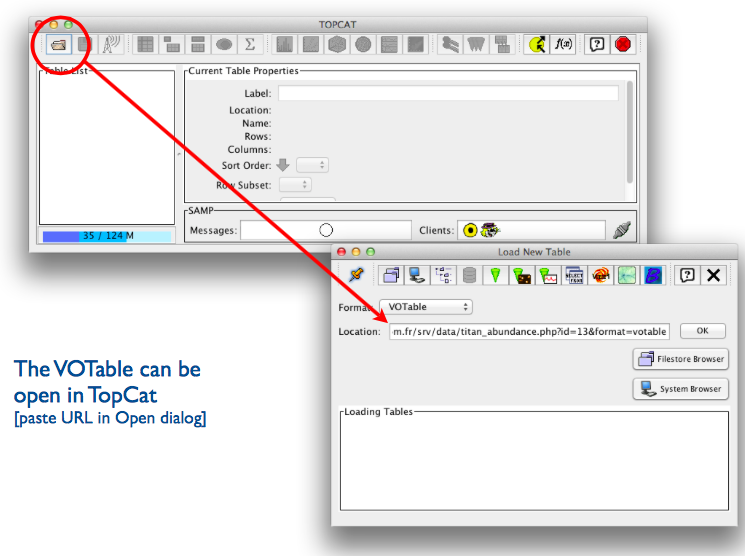

The VOTable can be open in TopCat
[paste URL in Open dialog]

18

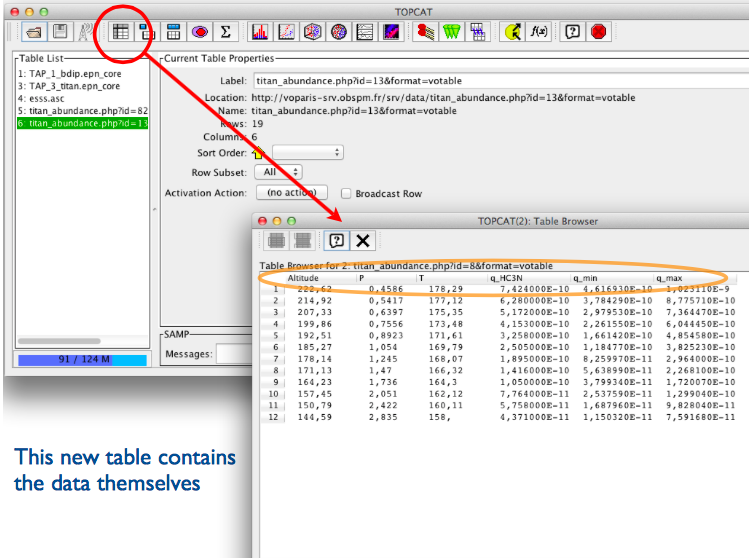

This new table contains the data themselves

19

TopCat can plot a variety of data types

20

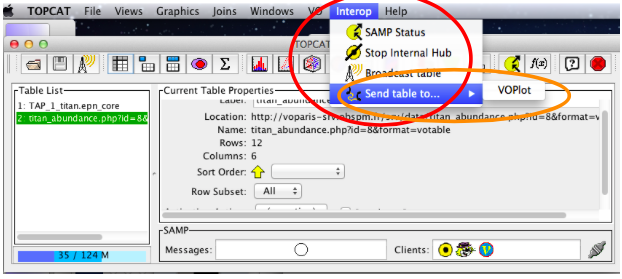

The VOTable can be transmitted to other VO ploting tools
[or paste URL in VOplot's Open dialog]

21

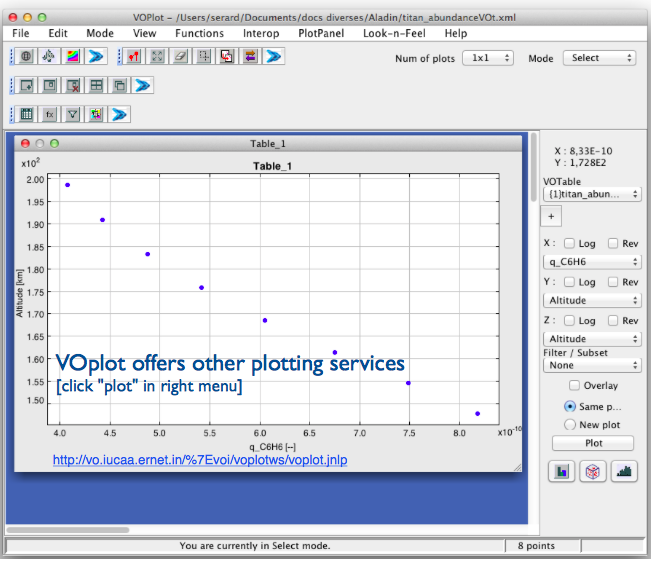

VOplot offers other plotting services
[click "plot" in right menu]

22

References

Please refer this markdown tutorial to this resource
